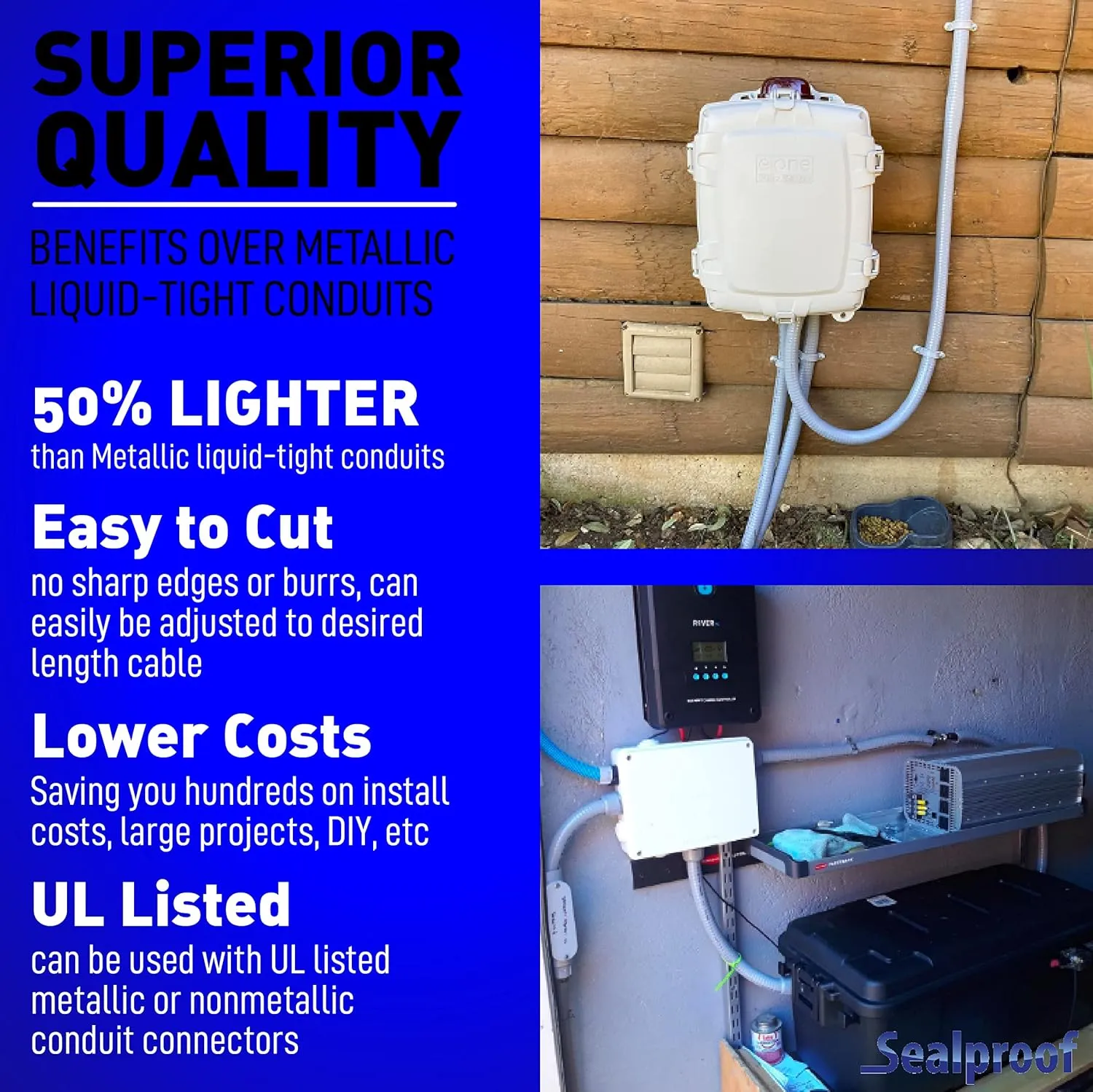

- Made in USA. Use with Sealproof straight or right angle connectors; can be used with any Type B mettalic or nonmettalic conduit connectors. 50% lighter than metallic conduits, no sharp edges or burrs

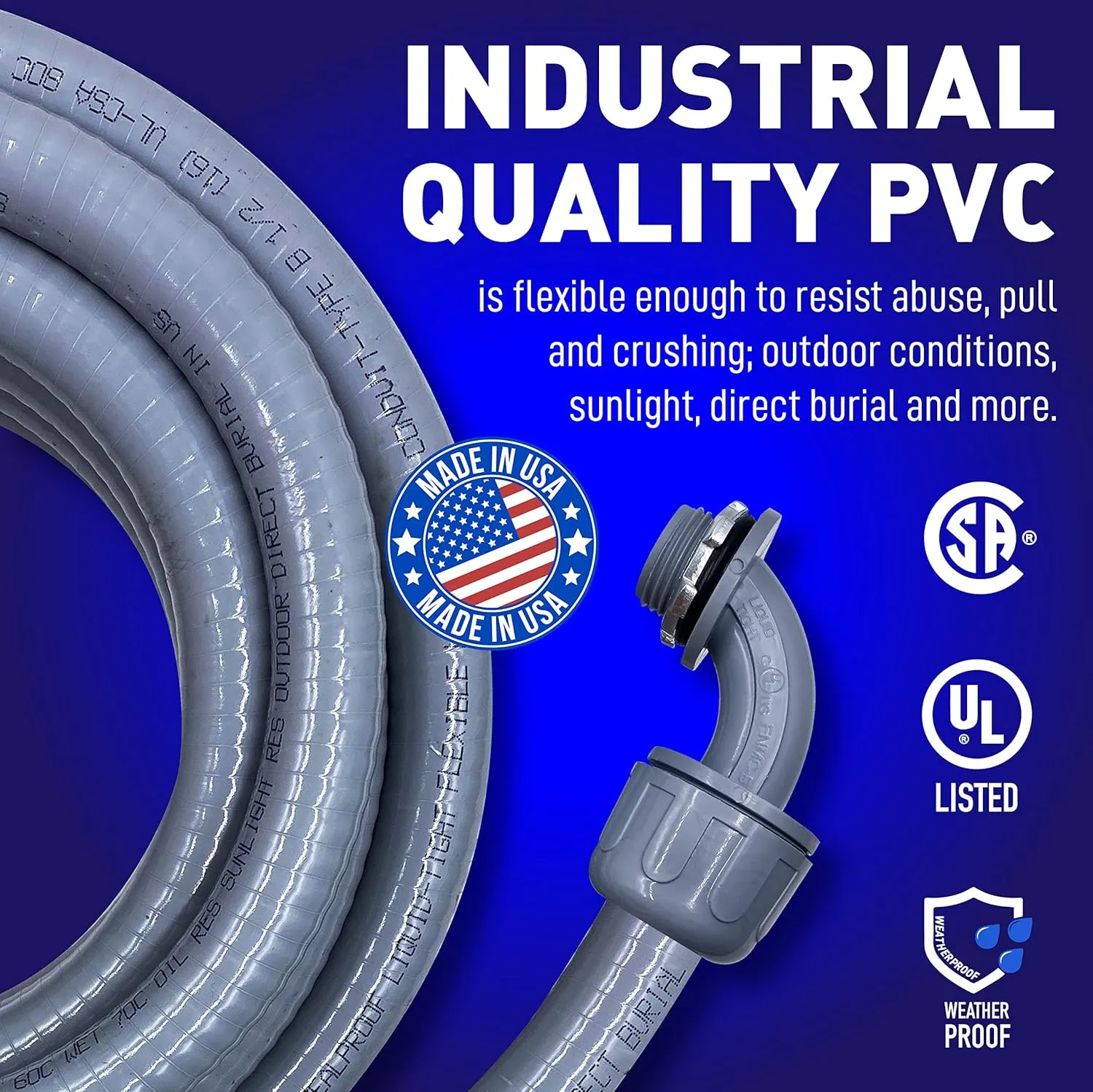

- Sealproof Made in USA flexible PVC conduit resists corrosion, abrasion, oil, water, acid, metal shavings, and rough environments; resists abuse, pull and crushing; outdoor, sunlight resistant, direct burial.
- Applications: HVAC Equipment, machine tools, marine equipment, motors and controls, printing equipment, pumps, refrigeration equipment, transformer connections, outdoor lighting
- Made from high quality virgin PVC. Smooth inside for easier wire pulling, no hazardous sharp edges or burrs, will not damage conductors. Light weight and lower installed cost. Quick installation, cuts with utility knife or PVC cutter. Integral rigid & flexible PVC construction
- UL Listed Underwriter's Laboratories File No. E-129973; UL Rating: 80°C dry, 60°C wet. 70°C oil resistant. CSA Certified, Candian Standards Association File No. LL-84705, CSA rating - 18°C to 75°C

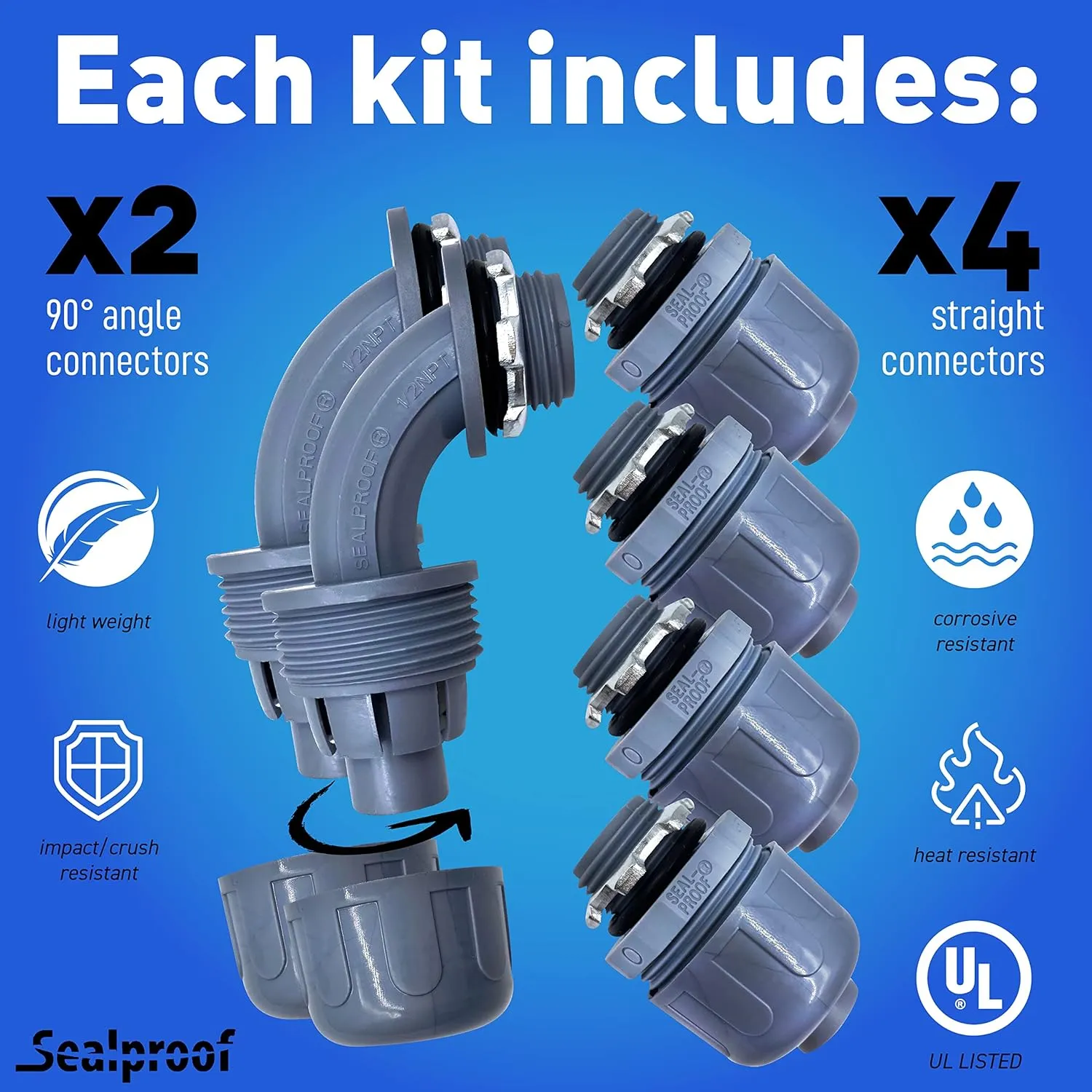

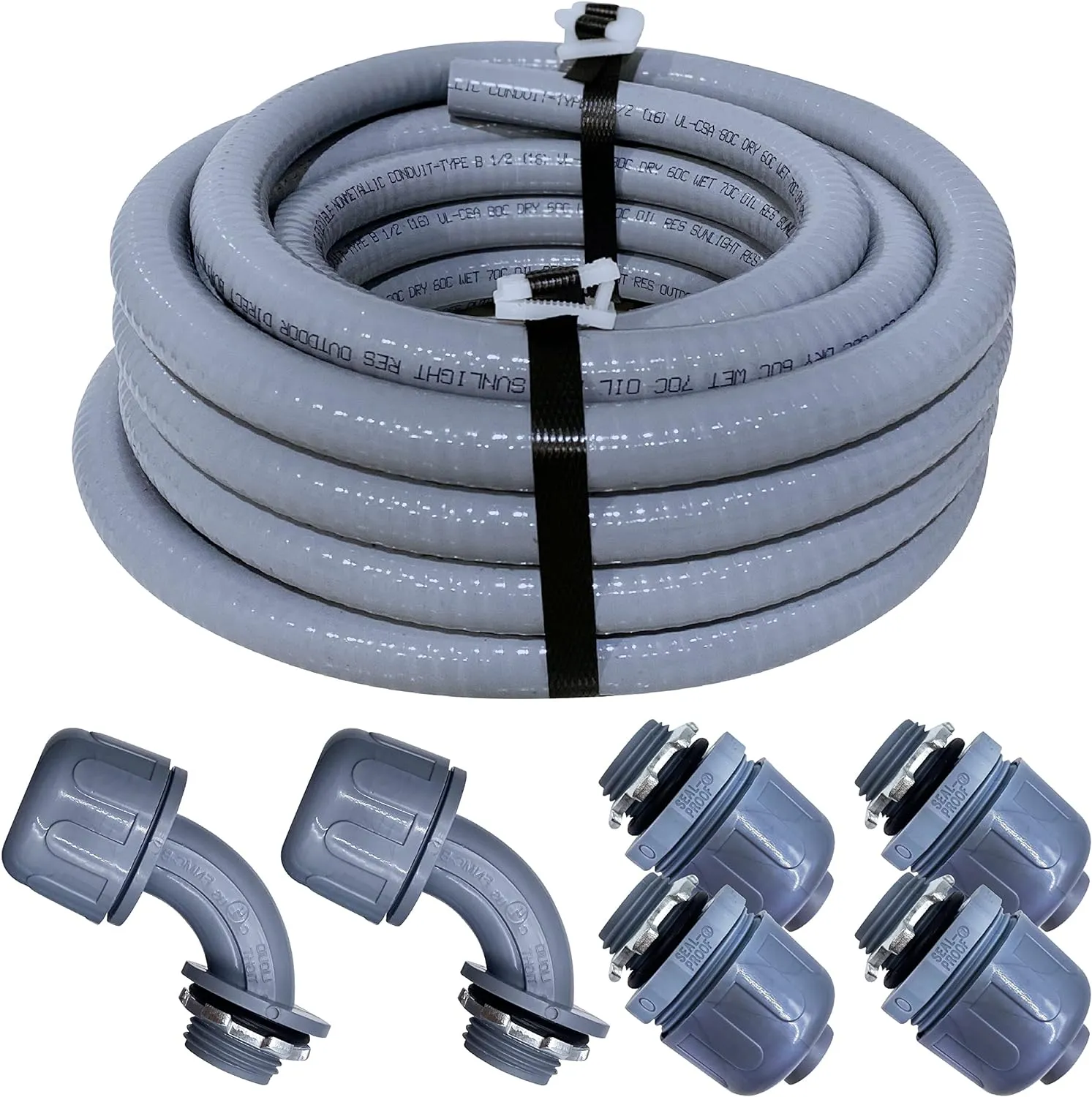

The Sealproof Conduit and Connector Kit includes The Sealproof UL Type B Flexible, Nonmetallic Liquid-Tight Conduit resists corrosion, abrasion, oil, water, acid, metal shavings, and rough environments. Resists abuse, pull and crushing.
Conduit Specifications
Listed under the Underwriter's Laboratories File no. E-129973
CSA Certified by Canadian Standards Association File No. LL-84705

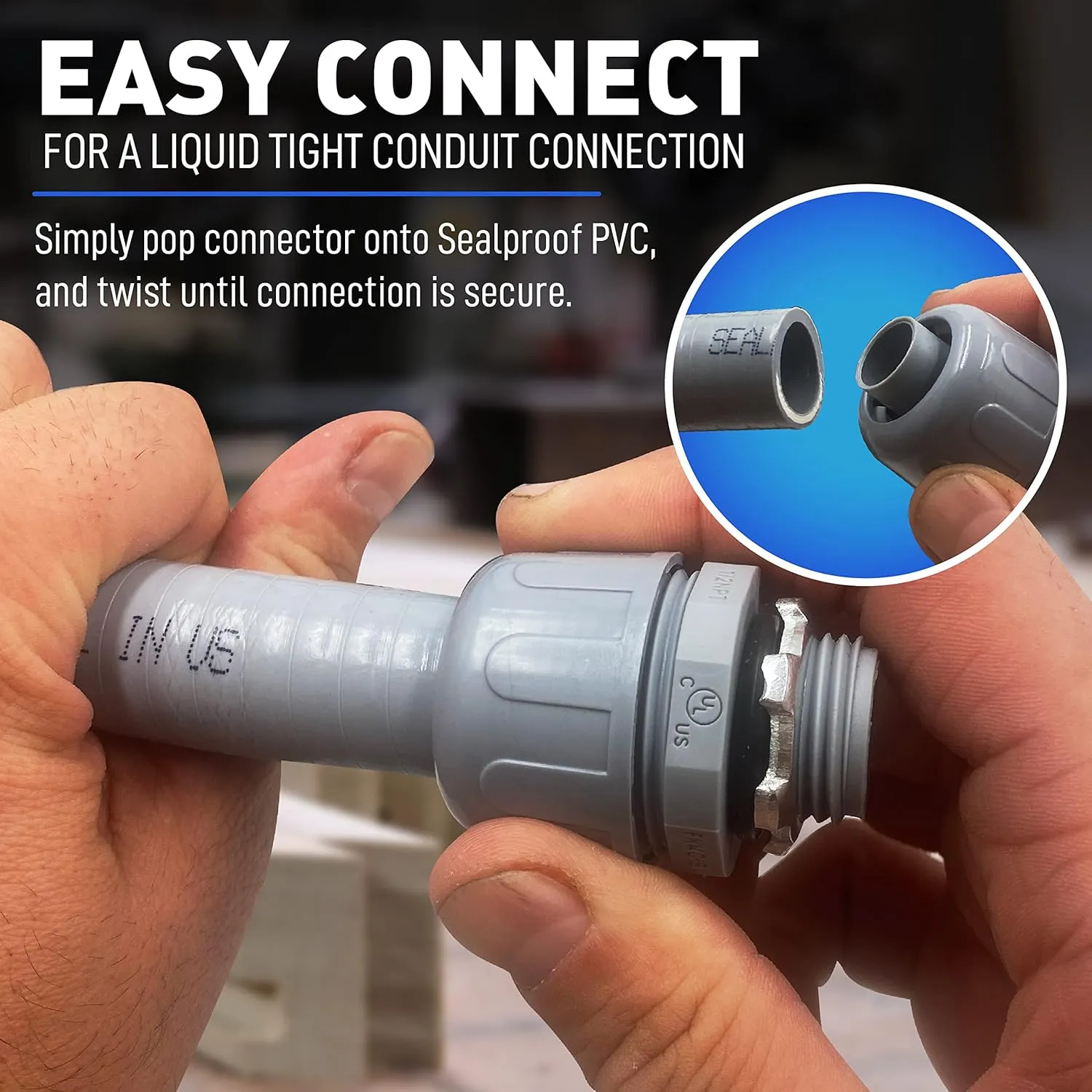

Use with Sealproof straight or right angle connectors
May also be used with metallic connectors for liquid-tight conduit
UL Rating: 80°C dry, 60°C wet. 70°C oil resistant
CSA rating - 18°C to 75°
CIntegral rigid & flexible PVC construction. Phthalate Free

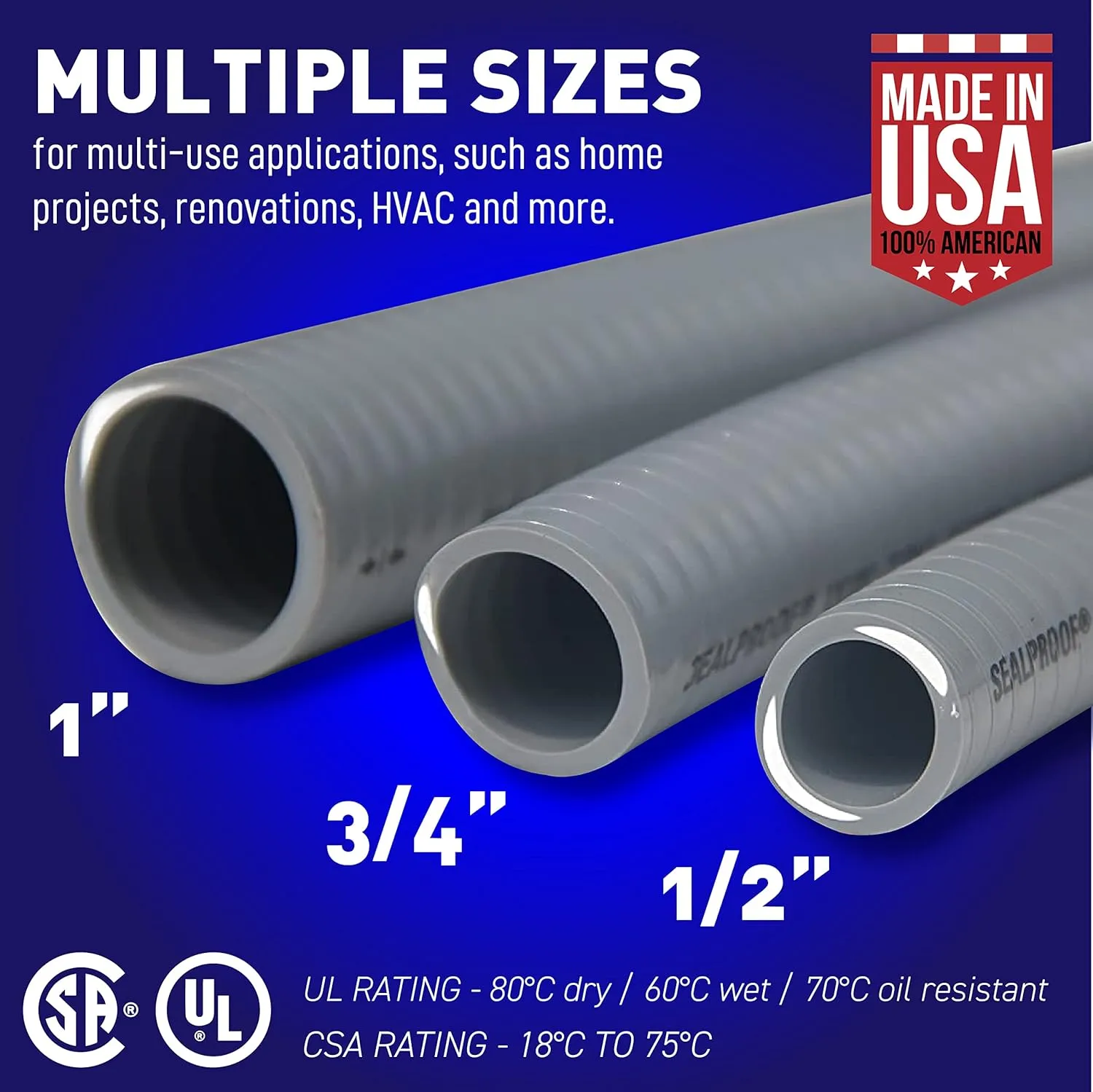

O. D. Min.-Max. 1.030 - 1.050"
I.D. Min.-Max. .820 - .840"
Connector Specifications
Molded of type nylon 6.
Flammability classification 94V-2
Temperature index 125°C
"0" Rings and steel locknuts included
